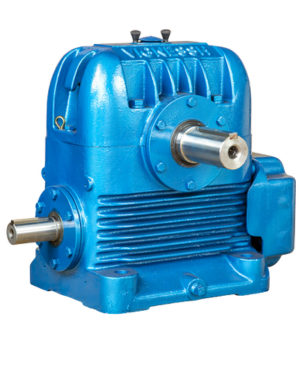

1. Three Type of Mounting Worm Gearboxes.
2. Under Driven, Over Driven and Vertical output shaft worm gearboxes.
3. Sizes: 1.625 Inches to 14 Inches center Distance Worm Gearbox Available.
4. Ratio from 5:1 to 70:1 in Single Reduction.
5. Ratio from 100 to 4900 in Double Reduction.
6. Gear Casing made from close-grained cast iron.
7. Worm Shaft is made Nickel-Chromium Alloy steel and case harden.
8. Worm Wheel is made Phosphor-Bronze PB2 Centrifugally Casted Ring to BS:1400 Grade.
9. Output shaft made of carbon alloy steel.
10. Lubricant Grade VG320 or 460 Grade Oil. Gear unit will be supplied without oil.

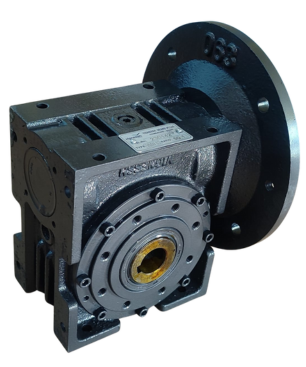

1. Universal Type ShaftMountedCast Iron Casing Worm Gearbox.
2. Type and Size VGMW 063 and VGMW 075.
3. Ratio from 10:1 to 70:1 in Single Reduction.
4. Gear Casing made from close-grained cast iron .
5. Worm Shaft is made Nickel-Chromium Alloy steel and case harden.
6. Worm Wheel is made Phosphor-Bronze PB2 Centrifugally Casted Ring to BS:1400 Grade.
7. Output shaft made of carbon alloy steel.
8. Lubricant Grade VG320 or 460 Grade Oil. Gear unit will be supplied with oil.

1. Two Types: Foot Mounted and Flange Mounted.
2. Sizes: 20mm shaft Dia Geared unit to 100mm shaft Dia Geared unit.
3. Ratio from 3.66 to 200 in single Reduction.
4. Ratio from 250 to 500 in Multi stage Geared unit.
5. Gear Casing made from close-grained cast iron.
6. Mechanical Rating – 0.12kw to 37kw.
7. Gears from Harden and Profile Grinded gear wheels.
8. The Gear unit is Quite and Noiseless Operating.
9. High Torque and Accept standard IEC Motors.
10. Lubricated with synthetic oil is for long life and will have no level and drain plugs.

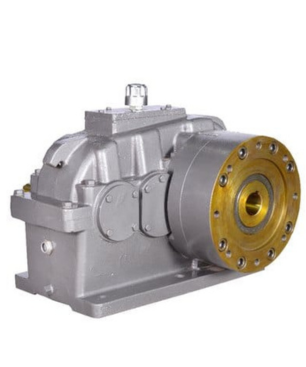

1. Two Type of Helical Extruder Gearbox.
2. Single Stage and Double Stage Extruder Helical Gearbox.
3. Sizes: 100 to 250 with Mounted Bearing Housing.
4. Ratio from 6:1, 10:1, 15:1 and20:1.
5. These units are in Split Housing.
6. Shaft Extension Keyway are as per IS:2048.
7. Gear and Pinion are Profile Grounded to Higher standard of Accuracy to relevant ISO/DIN.
8. Extruder Gearbox with Separate Thrust Bearing to carry different Thrust Bearing.
9. Output shaft are made of Heat treatable alloy steel which are harden to avoid twisting and bending effects.
10. Cooling Coil Provisions are provided.

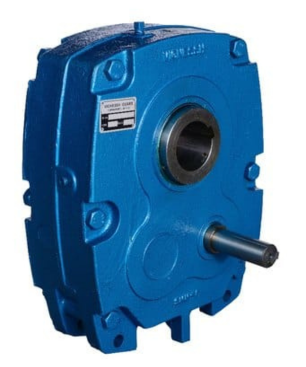

1. Mounts direct onto the Driven Shaft.
2. No alignment problems & No shaft Couplings.
3. The standard Torque arm Provided generally restricts any torque reaction and gives access for easy adjustment of ‘v’ belt from motor pulley.
4. Output speed 10 to 300 RPM.
5. Power Rating upto 113kW.
6. Gear unit sizes D, E, F, G, H& J with nominal gear ratios 13:1, 20:1, 25:1 & 30:1.
7. Helical gears are made out of Nickel, Chromium and Molybdnum, Case hardening alloy steel.
8. This profile ground gears ensures high standards of accuracy to relevant ISO/DIN Standards to achieve quite running characteristics.
9. Casing or Design optimum strength and give rigid support to the bearing.
10. For Inclined conveyors, it is important the Backstop is installed correctly to ensure a safe operation.

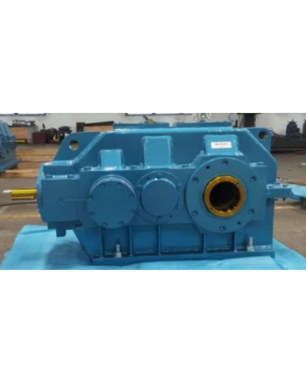

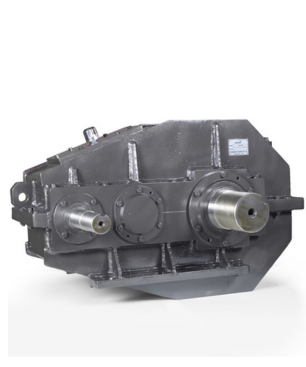

1. These Gear unit are available in parallel shaft helical Gear unit.
2. Single, Double, Triple, Quadrable reduction gear stage.
3. The Maximum output torque rating up to 950kNm.
4. Modern gears are made out of NiCrMo Case harden alloy steels.
5. Helical gear boxes are split cast iron housing and high designed fabricated steel.
6. When required to operate on non-reversing drives, backstop can be provided.
7. Mechanical fan fitted to highspeed shaft which is effective for either direction of rotation.
8. Cooling Water coil provide in bottom half gearcase dipped in lubrication oil sump.
9. Separate oil cooler, used in conjunction with forced lubrication system.
10. Torque arm/ Shrink disc/ base plate are supplied as optional extra, on specific request.

1. These Gear unit are available in right angle with parallel shaft helical Gear unit.
2. Single, Double, Triple, Quadrable reduction gear stage.
3. The Maximum output torque rating up to 950kNm.
4. Modern gears are made out of NiCrMo Case harden alloy steels.
5. Bevel Helical gear boxes are split cast iron housing and high designed fabricated steel.
6. When required to operate on non-reversing drives, backstop can be provided.
7. Mechanical fan fitted to highspeed shaft which is effective for either direction of rotation.
8. Cooling Water coil provide in bottom half gearcase dipped in lubrication oil sump.
9. Separate oil cooler, used in conjunction with forced lubrication system.
10. Torque arm/ Shrink disc/ base plate are supplied as optional extra, on specific request.

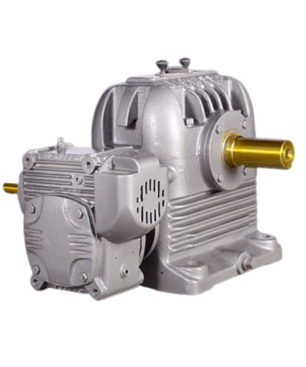

1. Three Type of Mounting Worm Gearboxes.
2. Under Driven, Over Driven and Vertical output shaft worm gearboxes.
3. Sizes: 1.625 Inches to 14 Inches center Distance Worm Gearbox Available.
4. Ratio from 5:1 to 70:1 in Single Reduction.
5. Ratio from 100 to 4900 in Double Reduction.
6. Gear Casing made from close-grained cast iron .
7. Worm Shaft is made Nickel-Chromium Alloy steel and case harden.
8. Worm Wheel is made Phosphor-Bronze PB2 Centrifugally Casted Ring to BS:1400 Grade.
9. Output shaft made of carbon alloy steel.
10. Lubricant Grade VG320 or 460 Grade Oil. Gear unit will be supplied without oil.

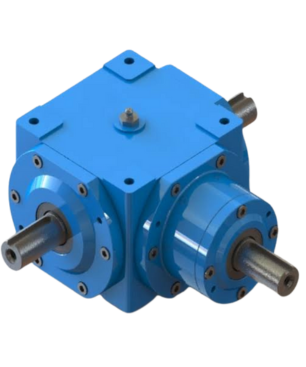

1. Bevel Helical gearbox can also transmit high torque at high speed.
2. This Bevel gearbox are highly configurable, reliable and economical right angle solution.
3. Two types are available. Straight Bevel gearbox and Spiral Bevel gearbox.
4. Modern Bevel gears and Spiral Bevel gears are made out of NiCrMo Case harden alloy steels.

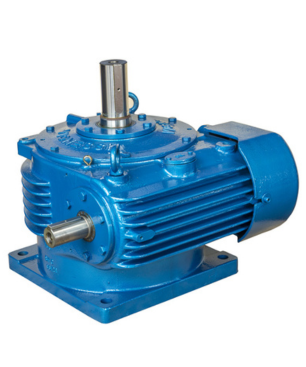

1. Rigid Vertically Output Shaft Worm Gearbox.
2. Sizes: 1.625 Inches to 14 Inches center Distance Worm Gearbox Available.
3. Ratio from 40:1 to 70:1 in Single Reduction.
4. Gear Casing made from close-grained cast iron.
5. Worm Shaft is made Nickel-Chromium Alloy steel and case harden.
6. Worm Wheel is made Phosphor-Bronze PB2 Centrifugally Casted Ring to BS:1400 Grade.
7. Output shaft made of carbon alloy steel.
8. Lubricant Grade VG320 or 460 Grade Oil. Gear unit will be supplied without oil.

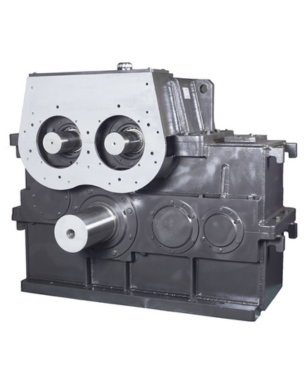

1. These Gear unit are available in parallel shaft helical Gear unit.
2. Single, Double reduction gear stage.
3. Triple output shaft Provide as per Application.
4. Modern gears are made out of NiCrMo Case harden alloy steels.
5. Helical gear boxes are split cast iron housing and high designed fabricated steel.
6. When required to operate on non-reversing drives, backstop can be provided.
7. Mechanical fan fitted to highspeed shaft which is effective for either direction of rotation.
8. Cooling Water coil provide in bottom half gearcase dipped in lubrication oil sump.
9. Separate oil cooler, used in conjunction with forced lubrication system.
10. Torque arm/ Shrink disc/ base plate are supplied as optional extra, on specific request.

1. Worm type and Helical Type Bevel Helical Gearbox.
2. 25Kg to 200Kg capacity.

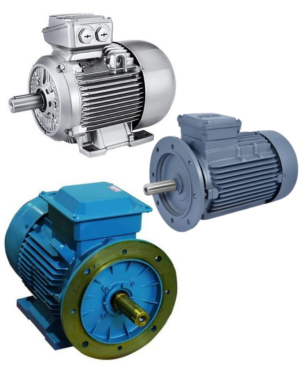

1. Bharat Bijlee Electric Motor Foot and Flange Mounting are Available (0.5Hp – 25Hp).
2. Siemens Electric Motor Foot and Flange Mounting (0.5Hp – 25 Hp).
3. Havells Electric Motor Foot and Flange Mounting (0.5Hp – 25Hp).
4. TGPL Electric Motor Foot and Flange Mounting (0.25Hp – 5Hp).
5. Custom Build Electric motors can be supplied.
6. Variable Frequency (VFD Can also Supplied).
7. Variable Frequency Motors can be Supplied.
8. 960RPM, 1440RPM, 2880RPM are available.
9. Foot cum Flange Motors are also Available.
10. Special High speed motors (5000RPM) can be supplied.

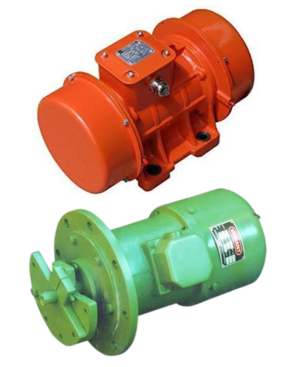

1. Fenner Make Vibrator Electric Motor Foot and Flange Mounting.
2. New Motor Vibrator Motor Foot and Flange Mounting.
3. 0.25Hp to 15Hp Foot and Flange Mounting Motors are available.
4. 960RPM, 1440RPM and 2880RPM Vibrator Motors are supplied.
5. Normal Load and Heavy Load Vibrator Motors are available.

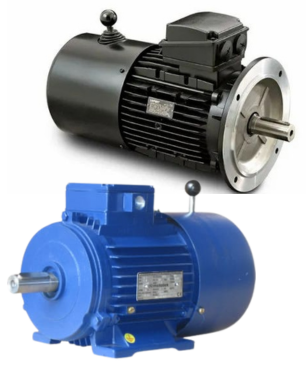

1. Crompton Greaves Electric Motor with VDC Brake.
2. Custom Build Brake Motors.
3. New Motors with Brake 24V VDC Brake.
4. Foot and Flange Mount Electric Motor.

We offer fast, high-quality Nonstandard Gearboxes and Spares, tailored to meet your specific needs with precision, reliability, and durability.

We offer fast, high-quality Customized Gearboxes and Spares, tailored to meet your specific needs with precision, reliability, and durability.

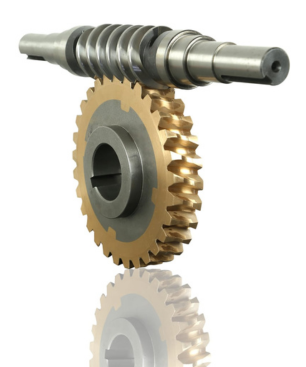

We offer fast, high-quality Spare Worm & Wheel Matched pair, tailored to meet your specific needs with precision, reliability, and durability.

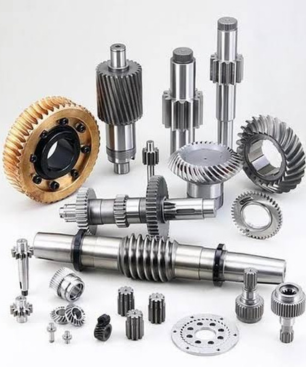

We offer fast, high-quality Customized Gears like Spur, Helical, Bevel, Spiral Bevel, Hypoid with harden Profile Ground, tailored to meet your specific needs with precision, reliability, and durability.

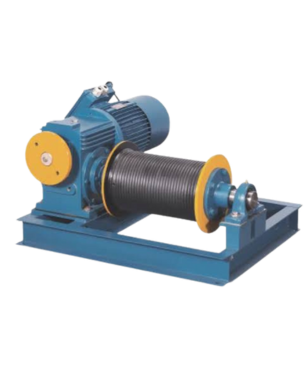

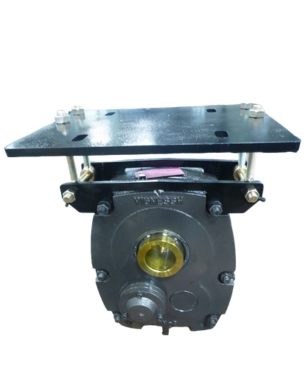

1. Worm and Helical Gearbox we can supplied.
2. With mechanical braking system are electrical VFD Brake system Supplied.
3. Minimum output speed 5RPM to 100RPM we can supplied.
4. Base Construction with Rope Cylinder assembly we can supplied.
5. 100Kg to 25 Ton Goods lift we can supplied.
6. Passenger lift gearboxes are available.
7. Lift complete set of units can be supplied ( without construction).
8. Gearbox with Brake motors 0.5Hp to 15Hp are Available.
